Model

4023

4028

5030

5041

Aperture Passing Width(mm)

400

500

Aperture Passing Height(mm)

230

280

300

410

Belt Width(mm)

370

470

Sensitivity for Fe(Φmm)

≥1.2

≥1.5

≥1.5

≥2.5

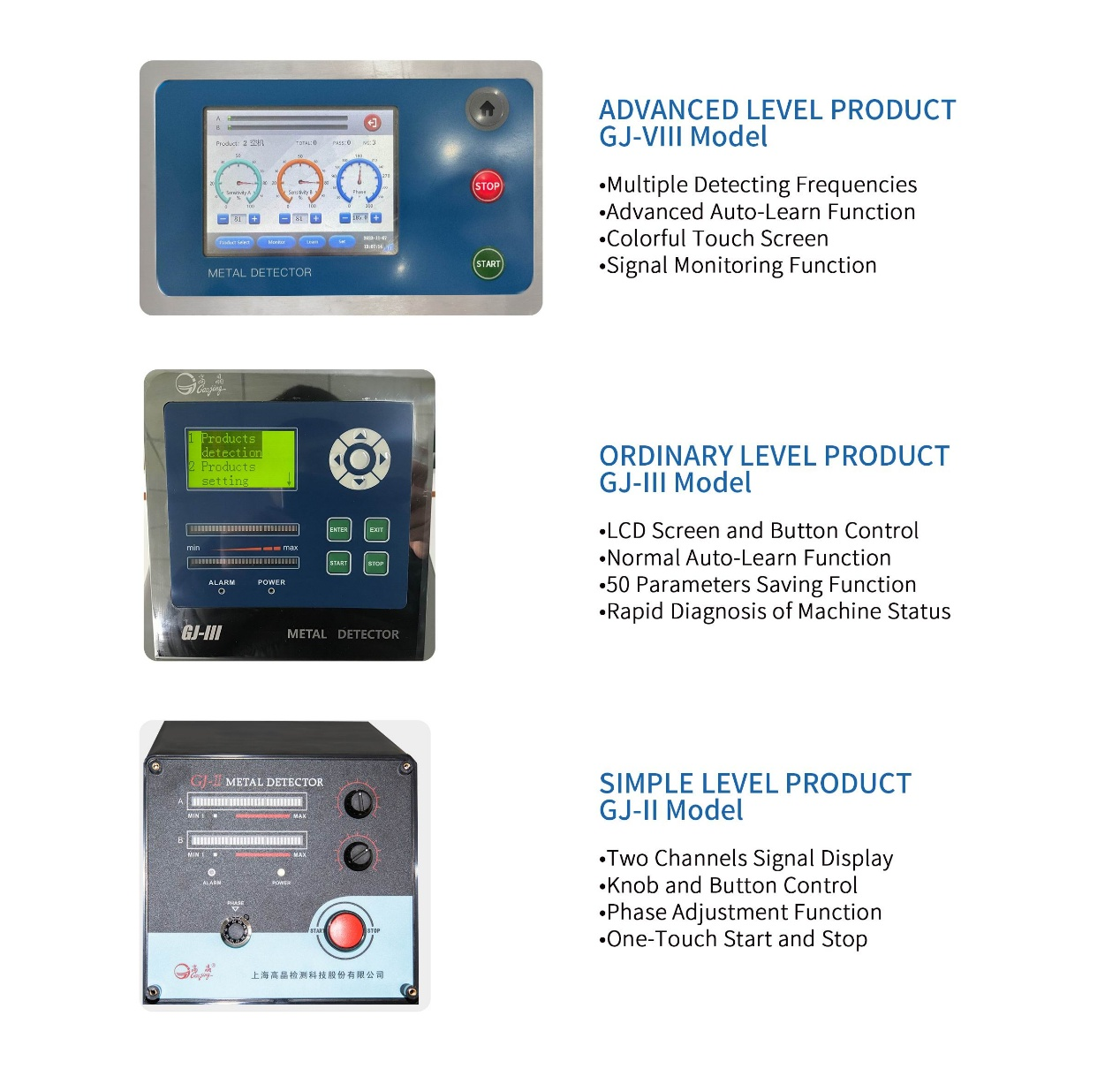

Control Panel

Knob and Button Control

Construction Material

Stainless Steel 304

Belt Type

PVC Belt

Power Supply

AC110～220V±10%, single phase, 50/60 Hz

Working Temperature

 -10 ℃ ～40℃

Conveyor Speed

Standard: 28 Meters/Minute
Optional: Adjustable Speed(extra charge)

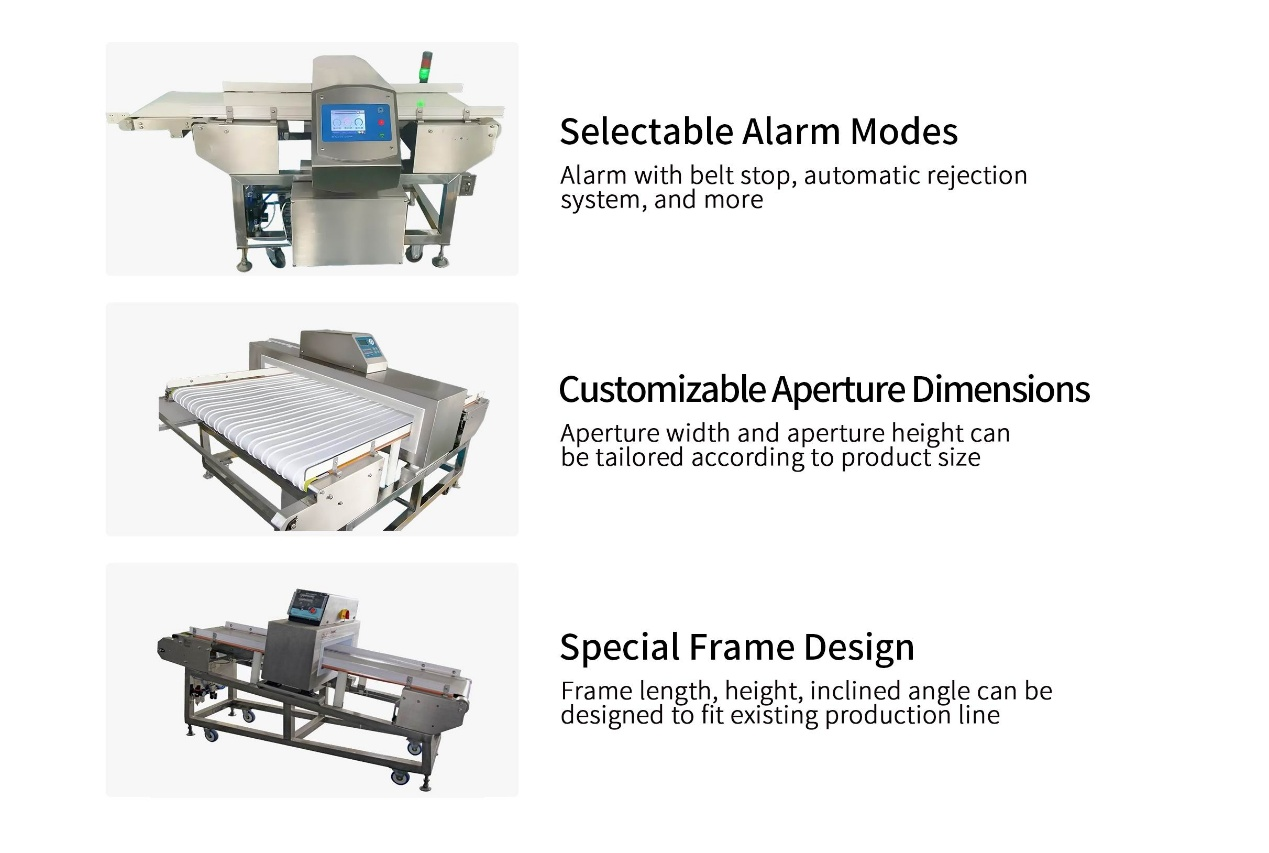

Alarm Pattern

Standard: Alarm Buzzer and Belt Stop

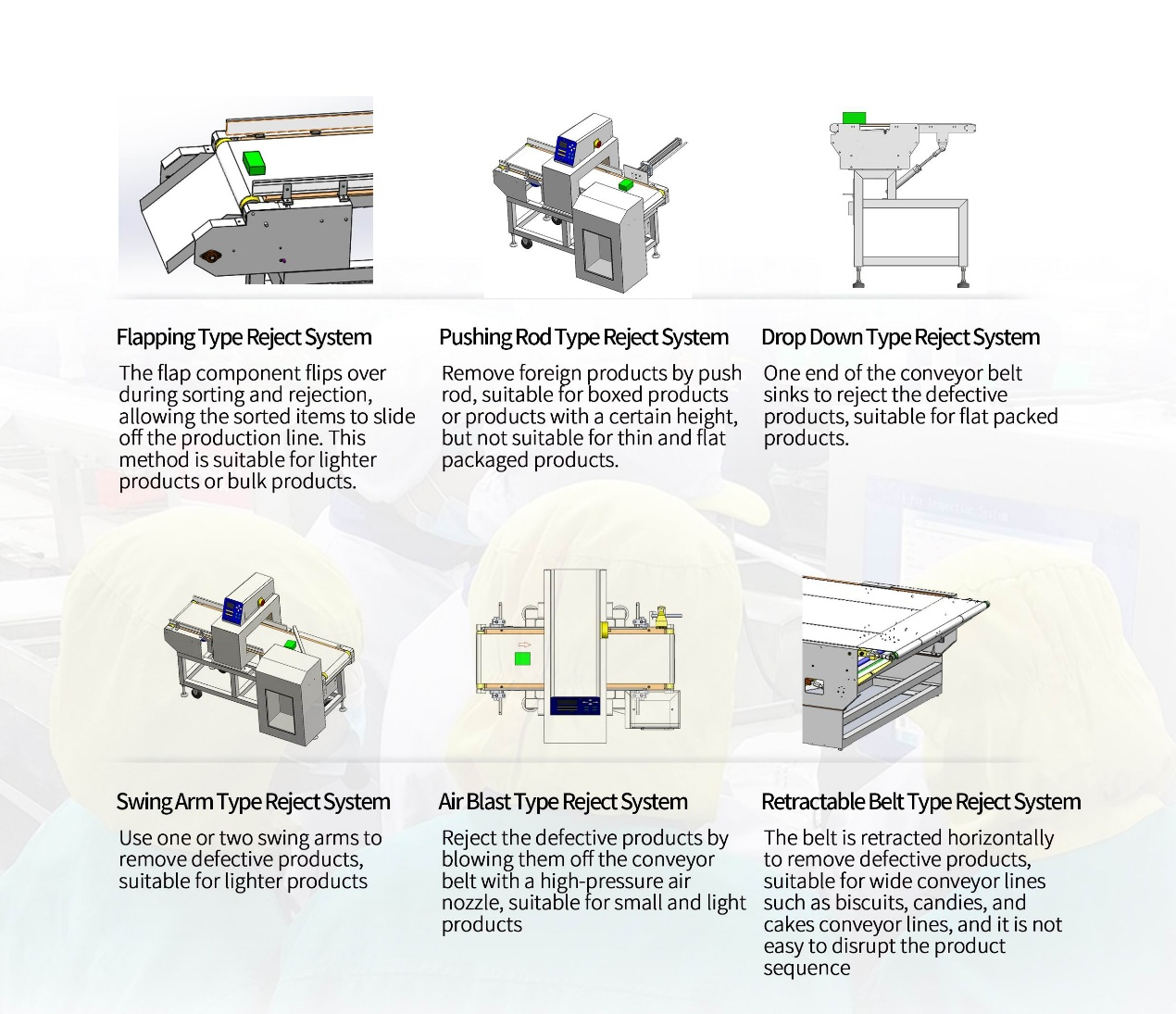

   Optional: Reject System(extra charge)

Note:
1.The above sensitivity is tested by standard testing piece in empty running conveyor, while the actual sensitivity with products will depend on the type, dimension, weight, package, composition, status of the products, position of the mixed contaminants and environment factors, etc.

2.Other special aperture size can be customized with extra charge
