Model

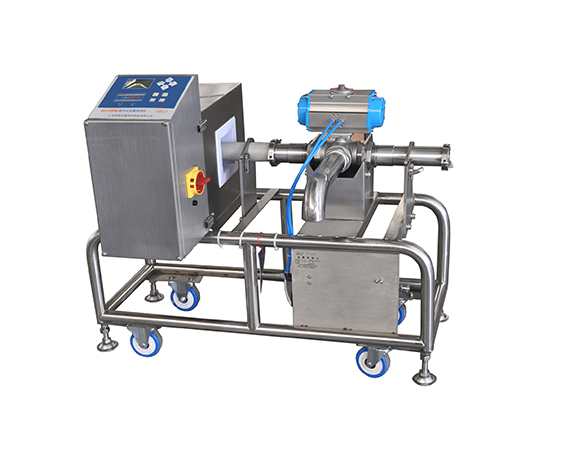

GJ-III Pipeline

Pipeline Diameter(mm)

Φ50(Φ2.0 '')

Φ63(Φ2.5'')

Sensitivity for Fe(Φmm)

Φ0.7

Φ0.8

Sensitivity for Non-Fe(Φmm)

Φ1.2

Φ1.3

Sensitivity for Sus(Φmm)

Φ1.3

Φ1.5

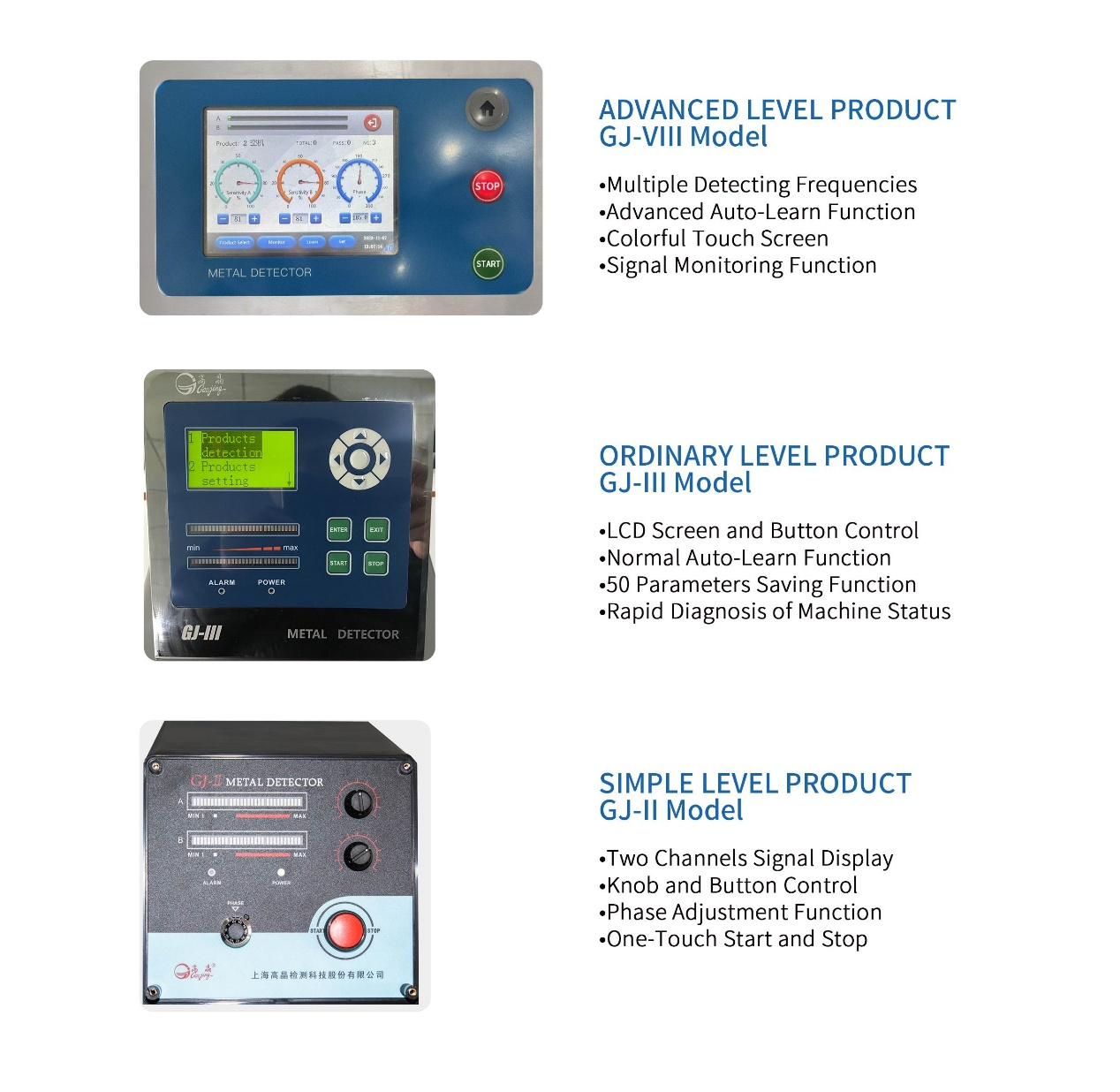

Control Panel

LCD Screen and Button Control

Menu Language

English

Parameter Setting

Normal Auto-Learn Function

Product Storage Quantity

50 Products

Construction Material

Stainless steel 304, inner tube is sanitary grade plastic

Power Supply

AC110～220V±10%, single phase, 50/60 Hz

Working Temperature

 -10 ℃ ～40℃

Detection Speed

Pressure Pushing

Alarm Pattern

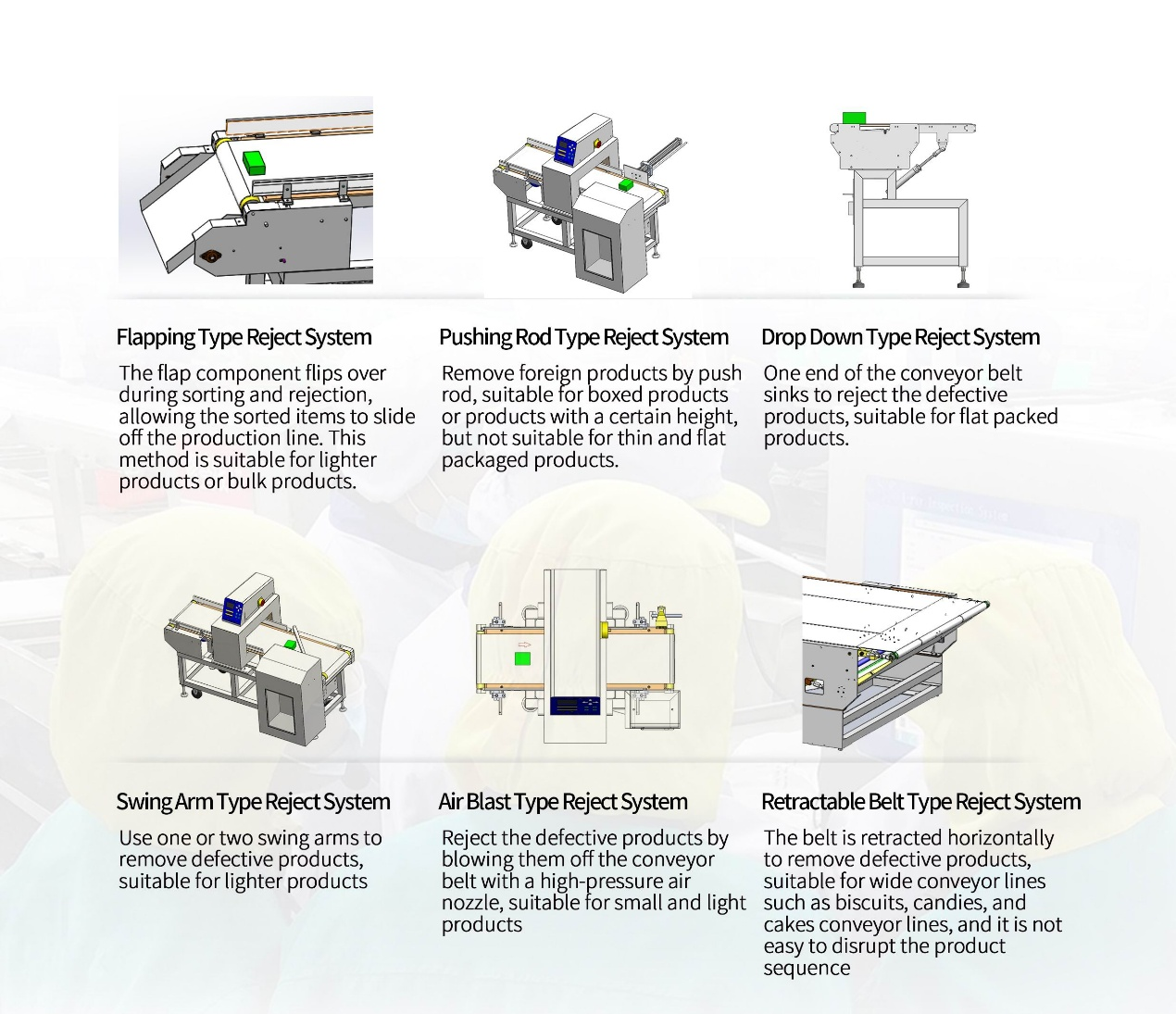

Automatic Valve Reject System

Air Requirement

0.3～0.6Mpa

Note:
The sensitivity is tested by Gaojing standard testing piece in empty running pipeline without products, while the actual sensitivity with products will depend on different product type, product composition, product temperature, product status, product effect, position of the mixed contaminants and environment factors etc.
