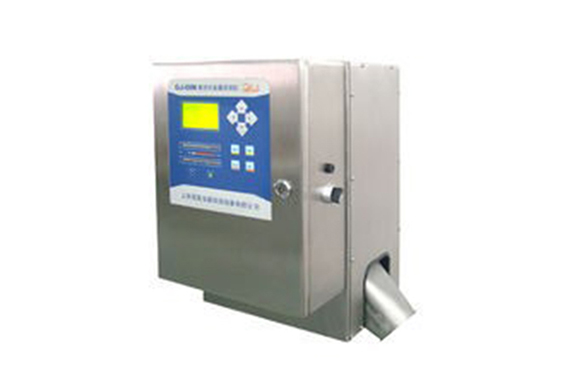

Model

GJ-III Freefall

Tube Diameter(mm)

Φ70

Φ100

Φ125

Φ150

Φ200

Sensitivity for Fe(Φmm)

0.7

0.8

1.0

1.2

1.5

Sensitivity for Non-Fe(Φmm)

1.2

1.3

1.8

2.3

2.8

Sensitivity for Sus(Φmm)

1.3

1.5

2.0

2.5

3.0

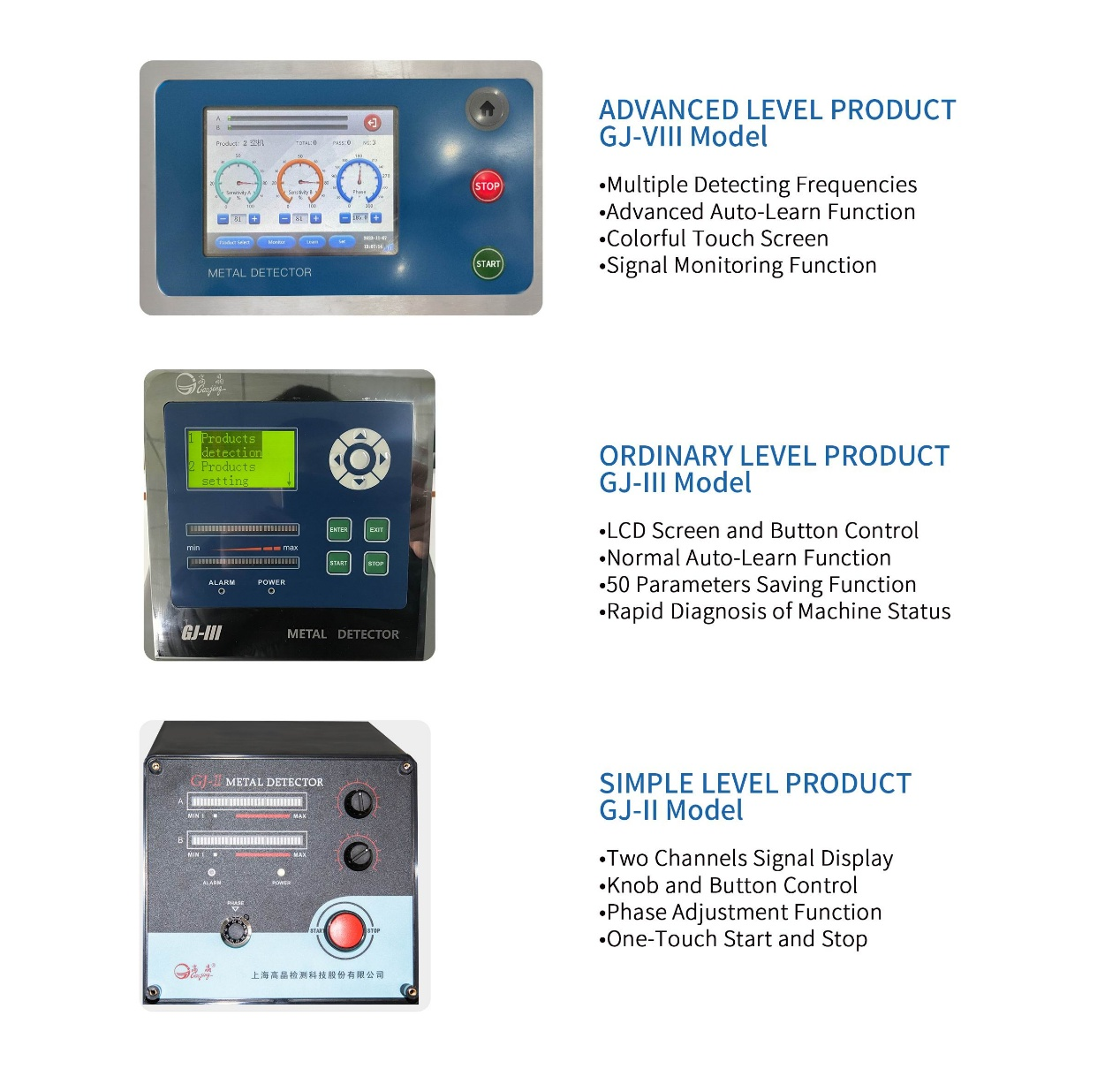

Control Panel

LCD Screen and Button Control

Menu Language

English

Parameter Setting

Normal Auto-Learn Function

Product Storage Quantity

50 Products

Construction Material

Stainless Steel 304,  inner tube is food grade PP material

Power Supply

AC110～220V±10%, single phase, 50/60 Hz

Working Temperature

 -10 ℃ ～40℃

Detection Speed

Gravity Speed

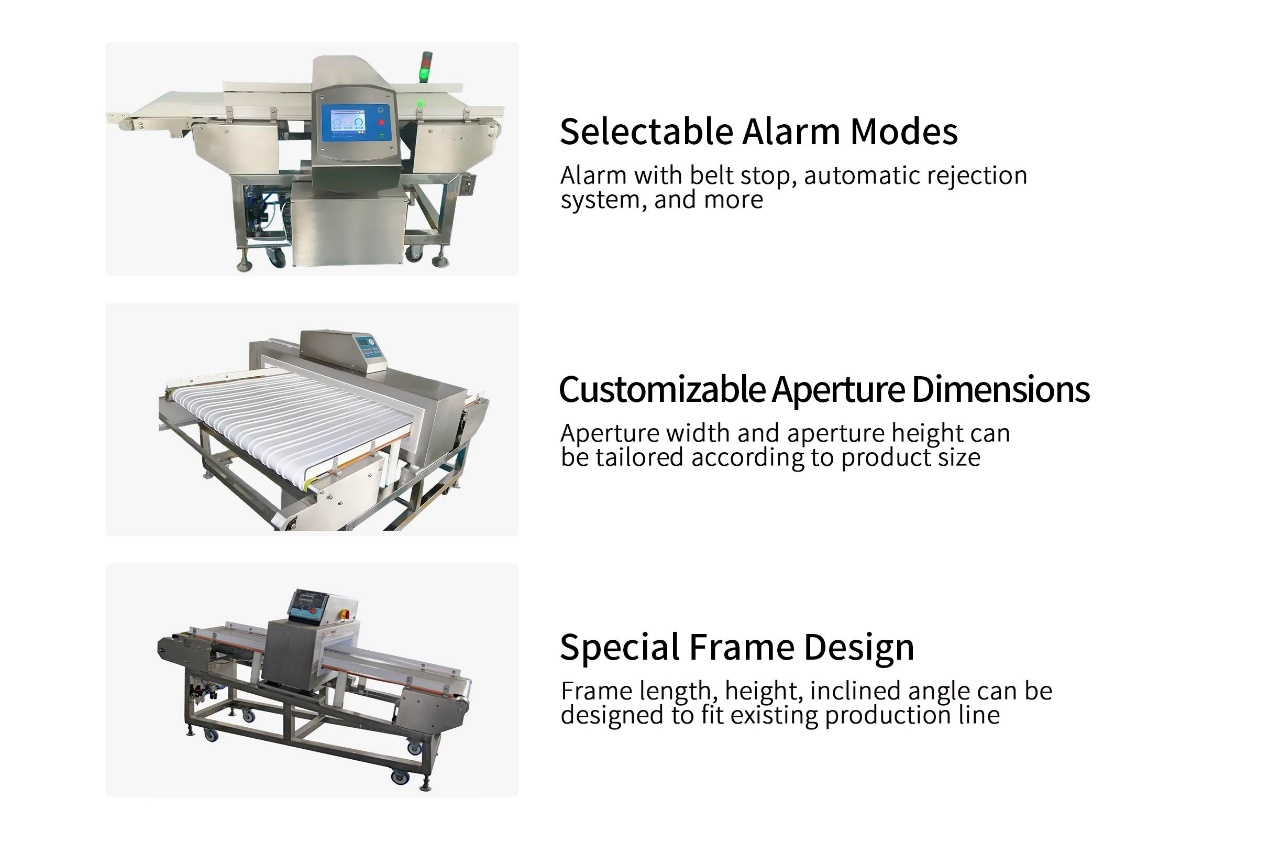

Alarm Pattern

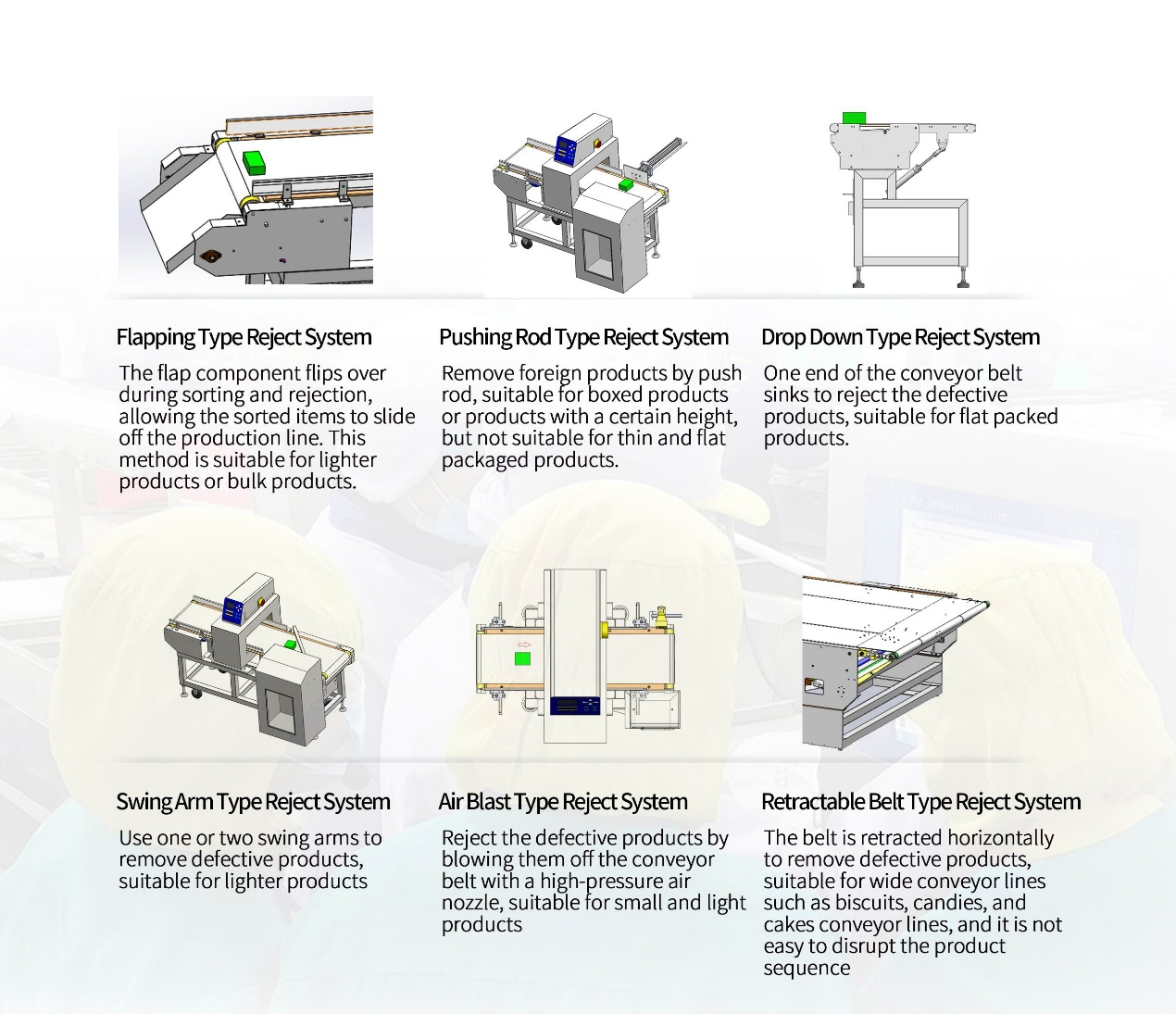

Automatic Valve Reject System

Air Requirement

0.3～0.6Mpa

Note:
The above sensitivity is tested by standard testing piece in empty running tube without products, while the actual sensitivity with products will depend on the type, feature, composition, status of the products, position of the mixed contaminants and environment factors etc.
